Needles 'n digits

build for 2014 Ford Fiesta 1.0 EcoBoost(JPN)
Boost, load, throttle, temps, etc.
*some gauge requires Ford 2014 PIDs.

Download this dasboard

Version: 0.31.1File Size: 572.25 KBCreator: chuhchimamaRating: 0
Last Updated: 09-20-2015Released: 07-25-2015Downloads: 2396Views: 10029
Tags:
0 ratings

Talk about this dashboard on our forums


optimized for Zenfone2 Landscape screen
* portrait screen not test : layout may collapse.
* Requires 2014 Ford Pids.

[history]
Version 0.31.1
fixing features.
<in trek mode>
[FIX] ambient temp needle has wrong scale
--
Version 0.31
fixing features.
<in night mode>
[FIX] colored connectivity icon updates
[CHANGE] fuel level accuracy
<in trek mode>
[FIX] compass does not work well
[FIX] atmospheric pressure has wrong scale
[CHANGE] pitch/roll accuracy
[CHANGE] bottom gauges : size and range
<in this string>
[FIX] typos ;)
--
Version 0.30
adding new screen.
<in skin set>

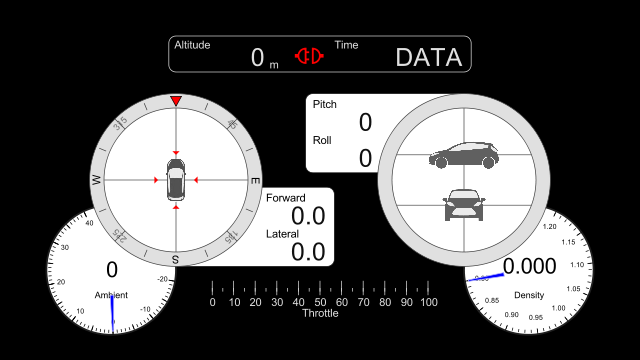

[NEW] Trek mode screen (experimental)

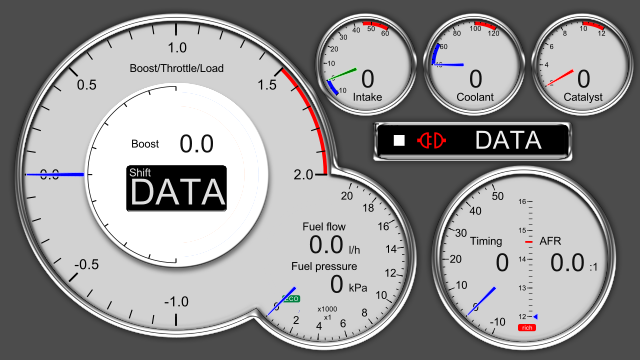

<in day mode>
[CHANGE] AFR gauge scale
[FIX] position of ideal-A-F-R probe
<in night mode>
[CHANGE] swap timing and fuel flow gauges
[CHANGE] colored connectivity icon
--
Version 0.22
tuning day mode.
<in day mode>
[CHANGE] Boost gauge inner layout
[CHANGE] indicator/clock position
[ADD] Throttle/load tick marks
[NEW] "lean""rich" indicator around AFR gauge
[FIX] water temp needle has wrong scale
--
Version 0.21
keep on strugging on day mode.
<in day mode>
[CHANGE] entire layout
[CHANGE] isolate temp gauges
[CHANGE] remove ambient temp
[CHANGE] colored connectivity icon
--
Version 0.20
strugging day mode.
for layout and performance test.
<in day mode>
[CHANGE] picture bezel
[CHANGE] entire layout
[CHANGE] remove Accelaration gauge
<in night mode>
[NEW] fuel as a digit
[NEW] catalyst temp as a digit
--
Version 0.12
ready for release.
performance improvements
design tuning
<in day mode>
[CHANGE] reconstuction layers
[CHANGE] ambient temp needle design
[CHANGE] font face
<in night mode.
[CHANGE] throttle/load gauge design
--
Version 0.11
ready for release.
performance improvement in night mode.
design improvement
<in day mode>
*nothing changed
<in night mode>
[NEW] adding some PIDs
[CHANGE] reconstruction layers
[CHANGE] shift indicator moves to left-main gauge
[CHANGE] main-right gauge contents (AFR-TIMING -> TIMING-Fuel Pressure)
[CHANGE] AFR gauge moved to left-add as text
---
Version 0.10
ready for release.
preparing for adding function.

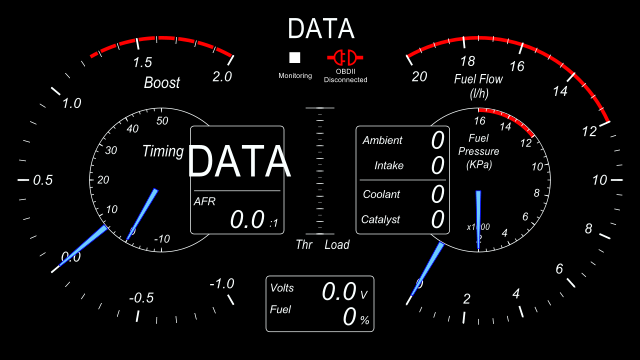

[NEW] simple night mode
---
Version 0.9
ready for release.
design improvement.
[NEW] ODBII connection status indicator
[NEW] DashCommand status indicator
[CHANGE] entire gauge layout
[CHANGE] entire gauge size (approx.10 percent increase)
[CHANGE] new design Accelaration gauge
---
Version 0.3
design improvement.
[FIX] clock does not work
[NEW] Fuel flow gauge
[NEW] Accelaration gauge (wish it will work)
[CHANGE] Unify gauge facia
[CHANGE] Needles design
[CHANGE] 'Boost' meter layout
[CHANGE] Timing gauge moves to 'Boost' Meter
[CHANGE] AFR gauge moves to 'engine fireing' meter
[CHANGE] rename 'engine status' meter to 'fuel supply'
[CHANGE] shift position is now from FORD.TRANS.GEAR_CMD
---
Version 0.2
update enabling functions.
[FIX] smoothing needles
[FIX] scale of Fuel pressure gauge
[CHANGE] Shift Indicator moves to Boost meter
[CHANGE] remove Shift gauge
[NEW] Clock
---
Version 0.1
enabling functions.
[FIX] some PIDs work well
[FIX] gauge layout
[CHANGE] integrate Ambient temp/intake temp
[CHANGE] Timing digits moves 'fireing' gauge
[CHANGE] Sub tick marks assigned at some gauges
[NEW] timing bar gauge
---
Version 0.0
First editon. almost gauge isnt work well
