Envoy A Mobile WS1 Landscape Wake

Tweaked to remove Trips and move A/F to engine 1

Simple and elegant set of dashboards in high contrast black & white with a splash of color suitable for mobile devices with a 320x480 screen.

Download this dasboard

Version: 1003.1.4File Size: 468.03 KBCreator: charl77Rating: 0
Last Updated: 03-11-2021Released: 09-07-2020Downloads: 929Views: 3049
Tags: Tuxedo,Landscape,iPhone,2:3,320x480,HVGA,iPod,640x960
0 ratings

Talk about this dashboard on our forums


***

Removed Trip screens to increase performance
Fixed needle values for MAP and MAF containers
Moved A/F Lambda to engine 1 and MAP to engine 2

-Wake

***

I have edited this dashboard to clean up some of the coding - using clip arcs and moving objects to the background to improve performance. No changes have been made to the design, only to the objects that render the design.

--skybolt

***

This set of 6 dashbaords includes the following gauges and features:

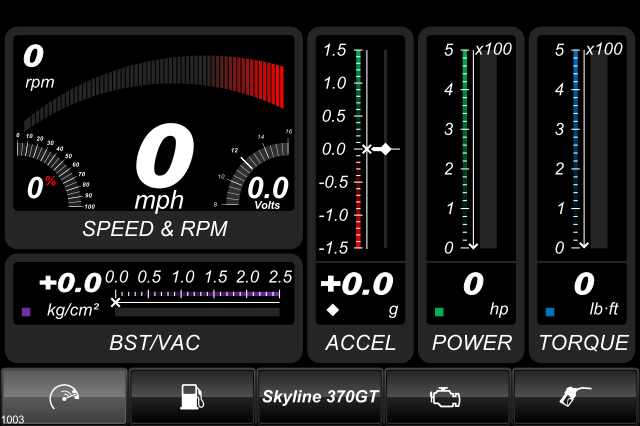

Performance dashboard:
- engine speed with sweeping bar
- corrected vehicle speed
- current fuel system in use (open or closed loop)*
- accelerator pedal position*
- throttle position*
- boost / vacuum combo gauge with maximum vacuum and maximum boost values
- acceleration (and braking)
- power at wheels with optional drag correction (air & tire)**
- torque at wheels**

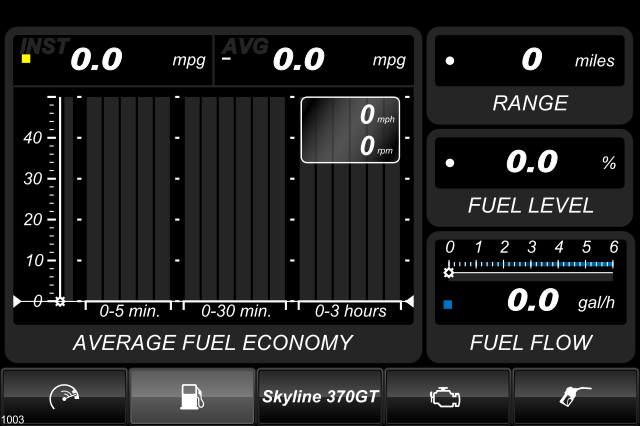

Fuel economy / consumption dashboard:
- instantaneous fuel ecomony / consumption
- average fuel economy / consumption
- average fuel economy / consumption over 3 time periods
- distance to empty *
- time to empty *
- fuel level % *
- volume of fuel remaining in tank *
- fuel flow rate gauge with current, average, minumum and maximum values

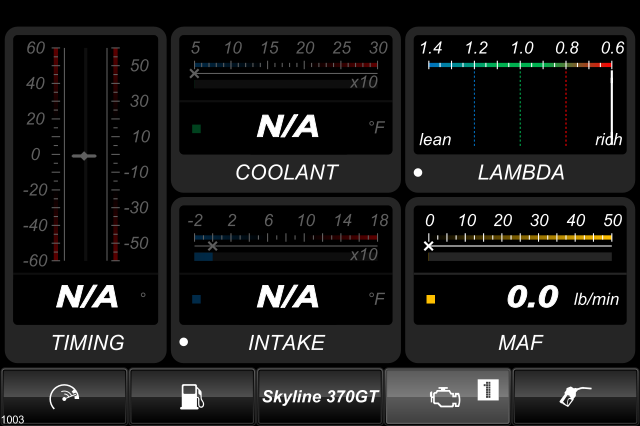

Engine metrics dashboard 1:
- timing (spark avdance) *
- engine coolent temperature *
- intake air temperature
- ambient air temperature *
- manifold absolute pressure
- mass air flow

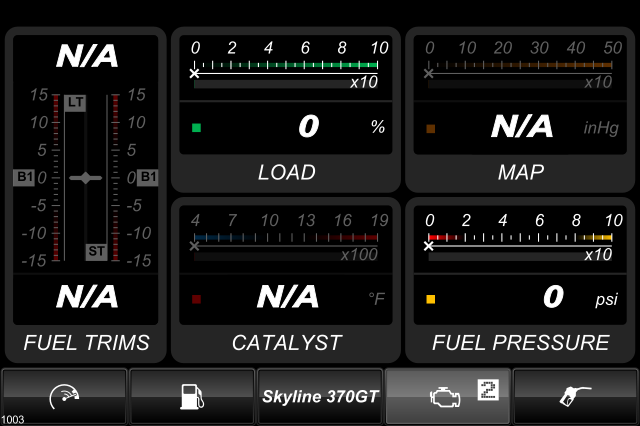

Engine metrics dashboard 2:
- fuel trims, short and long term (banks 1 to 4) *
- percent engine load *
- catalyst temperature *
- fuel rail pressure wwith two scales, low and high *
- lambda gauge with commanded and actual readings *
- air / fuel ration gauge *

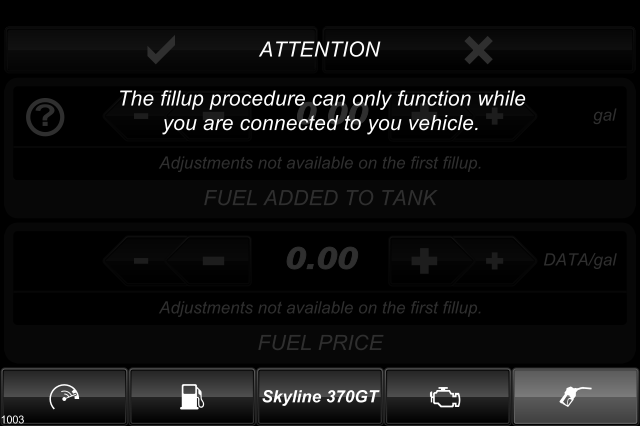

Fillup dashboard:
- record fuel tank fillup events
- calibrates the fuel economy / consumption calculations
- allows input of the fuel price

* requires that the vehicle supports the underlying parameter ID.
** curb weight must be specified in the vehicle settings
