Cadillac Escalade - GMT8xx Series

2006 Cadillac Escalade :: Earth Day 2023

Download this dasboard

Version: 4.22.23.1File Size: 8.05 MBCreator: SkyHawkRating: 0
Last Updated: 04-22-2023Released: 08-22-2022Downloads: 1962Views: 5617
Tags: Samsung Galaxy Z Fold 2, Cadillac Escalade, SkyHawk
0 ratings

Talk about this dashboard on our forums


Cadillac Escalade v4.8.23.2 :: April 8th, 2023 - 2nd revision.

fixed temp clock hands on compass

fixed versioning

added Volt Gauge SW

disabled data smoothing

fixed dashboard verbage / bugs ugh

added Trinity

added vector tick marks for the A380 speedometer tape.

testing A380 MPH speedometer tape calibration.

enabled data smoothing .. font change on MPH/KPH

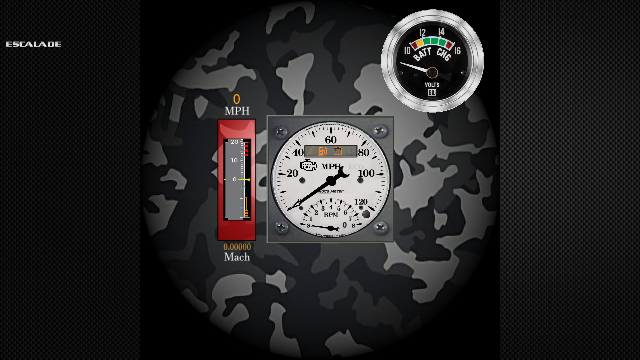

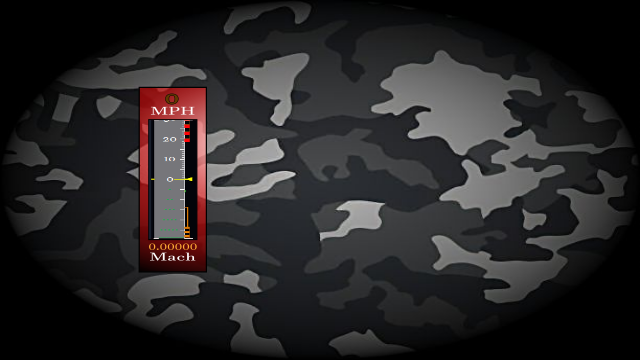

[Added A380 PFD Speed Tape shown in MPH displayed as MACH]
Set mode selections for the analog white guage.

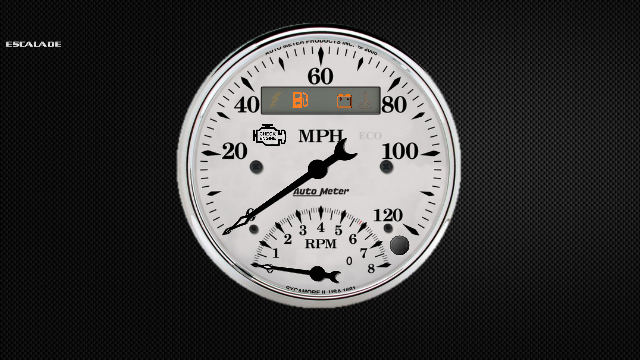

[Added MPH / RPM dashboard with warning lights]
*adding mode button to cycle through fuel level,coolant temperature, etc.]

[Added Voltmeter]

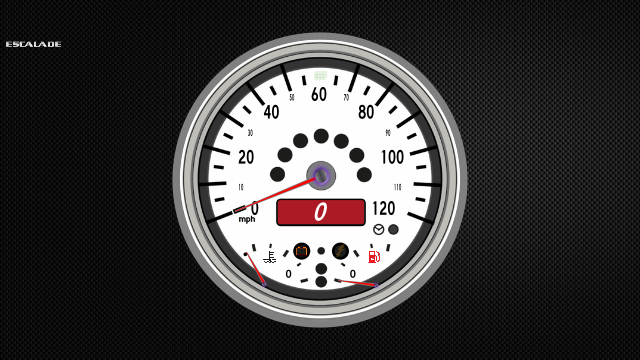

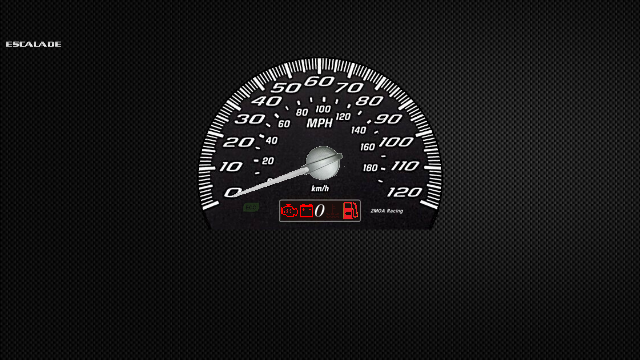

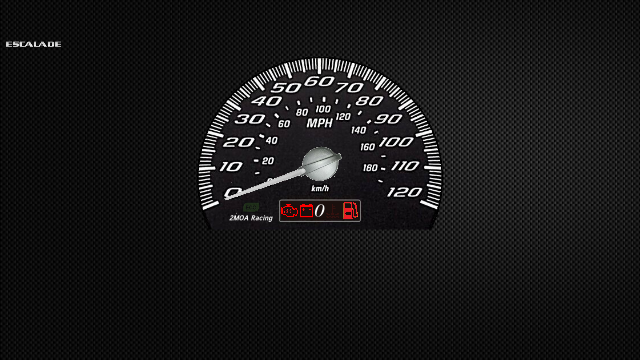

[Added Speedometer dashboard with analog gauges etc.]

[Added menu button at top left to toggle from logo > version > blank]

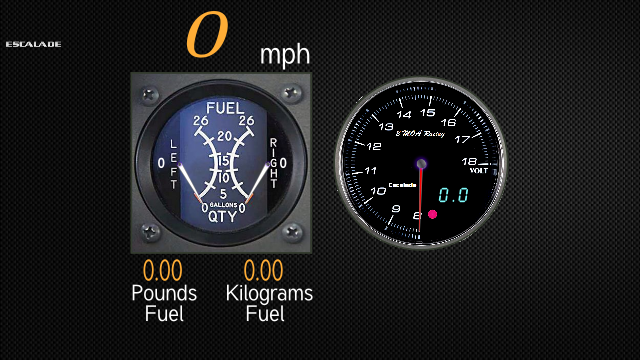

[Added fuel dashboard with Cessna 172 fuel gauge (dual 26 gallon tanks) using the below script yields weight]

Note: You need to swipe left/right to access the Simon :: BMFTech Analog Dashboard. Added 2 features:
1. Pressing the Speedometer needle button will change the needle colors form Red > Green > Blue > White > Soft White.
2. Pressing the button located to the lower left of the Speedometer needle button will change the gauge markings and readout from Red > Green > Blue > White > Soft White.

[Added SCRIPT.FUEL_WEIGHT.psf that converts gallons to pounds or kilograms] just for novelty use only but interesting non the less.

To install this script to your device Download:
http://www.dashxl.net/forum/index.php?action=dlattach;topic=18236.0;attach=917

[watches/clocks]

*Added mph/kph within the Rolex <day of month> window

This set of 10 dashboards includes the following gauges and features some of which were adapted from other works:

(Brief overview of dashboards) :: additional listings of features will be added soon :: duet

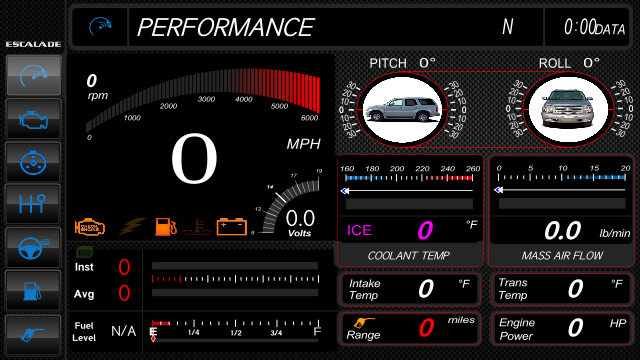

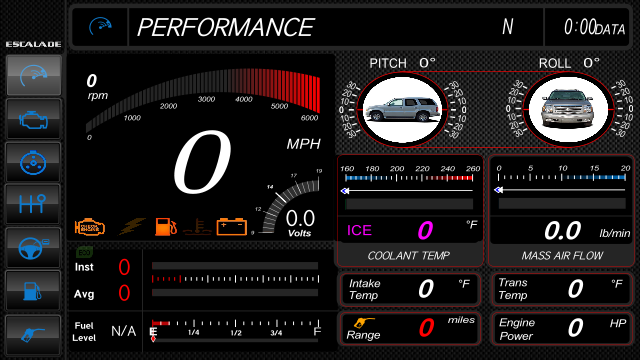

Performance dashboard - many items to be further explained.
- title bar course display press to toggle either ordinal, cardinal, or disabled.

- title bar time display press to toggle either 12 hour, 24 hour, 24 hour LED, or disabled.

- engine speed with sweeping bar from 0 to 6000 RPM
- large vehicle speed display in miles per hour
- warning lights: check engine, Knock Retard, Low Fuel, High Temperature, and High or Low Voltage.
- vehicle volts sweeping and numeric display
- gallons of fuel remaining in tank *
- fuel level in tank
- mini-Inclinometer of both pitch and roll with warnings at 35 and 45 degrees. fixed degree spacing width.
- more to be further explained.

***************************************

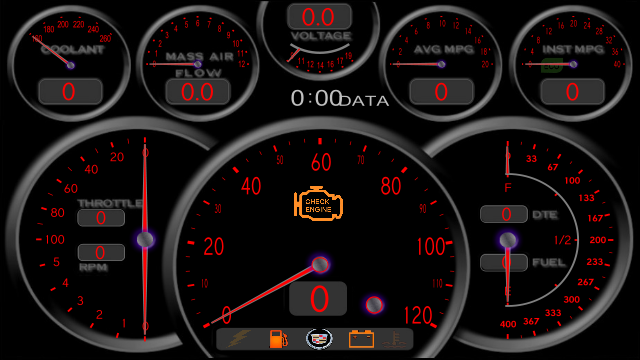

*Analog Dashboard :: credit to Simon :: BMFTech Multi Color mod kml (modified by SkyHawk)
- multi gauge readout and needle color choices.
- added mass air flow gauge.
- fixed voltage gauge sweep direction.
- coolant bezel color changes to red if temperature > 210 deg F. Text changes Red too.
- added [eco]nomy symbol and bezel color change to green if instant mpg is 16 mpg or greater. Text changes Green too.

- more to be further explained.

***************************************

Engine 1 and Engine 2 (press to toggle engine displays)

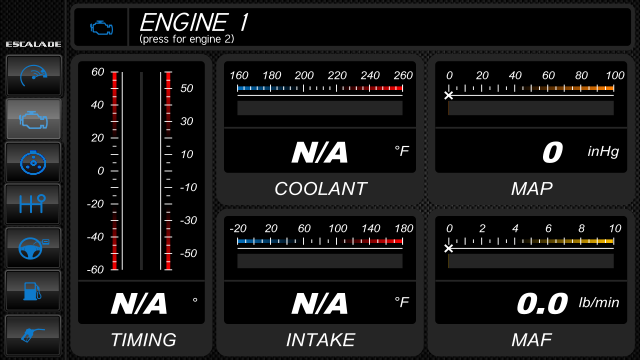

Engine 1 metrics dashboard 1:
- timing (spark advance) *
- engine coolant temperature *
- intake air temperature
- ambient air temperature *
- manifold absolute pressure
- mass air flow
- more to be further explained.

Engine 2 metrics dashboard 2:
- Oxygen sensors in order
- more to be further explained.

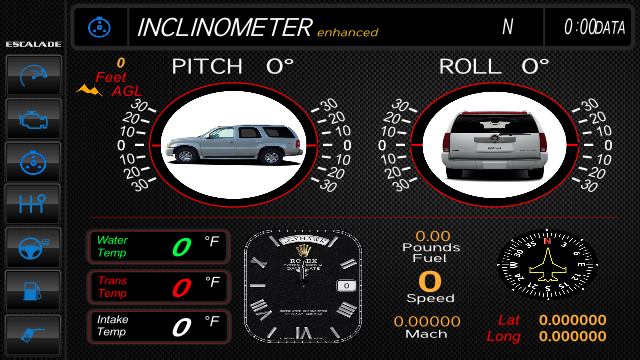

Inclinometer - alerts when 35 or 45 degrees exceeded.
- title bar course display press to toggle either ordinal, cardinal, or disabled.
- title bar time display press to toggle either 12 hour, 24 hour, 24 hour LED, or disabled.
- added feet above ground level (AGL) display
- engine speed displayed shown as RPM
- large vehicle speed display in miles per hour
- water temperature, transmission temperature, and intake air temperature.
- fixed tick marks text width for pitch and roll.
- added 2006 Cadillac Escalade pictures for pitch and roll
- corrected the roll image to roll correctly left or right as sitting in the driver’s seat.
- added Mach reading (novelty) that requires SCRIPT.VSS_MACH.psf **
- added compass with T38/F5 silhouette and cardinal degree rose with bearings.
- latitude and longitude were added
- more to be further explained.

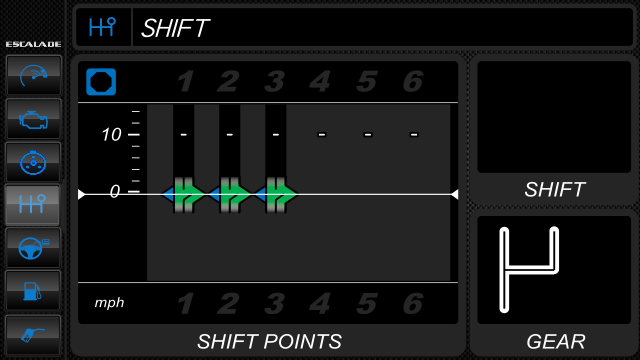

Shift and Gear Dashboard
- current gear
- suggested gear based on speed
- shift indicator
- shifting and gear map
- more to be further explained.

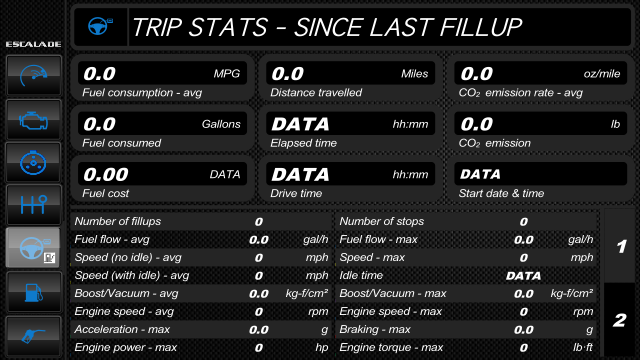

Trip Computer Dashboard
- massive collection of key data points :: credit to whomever wrote this dashboard
- more to be further explained.

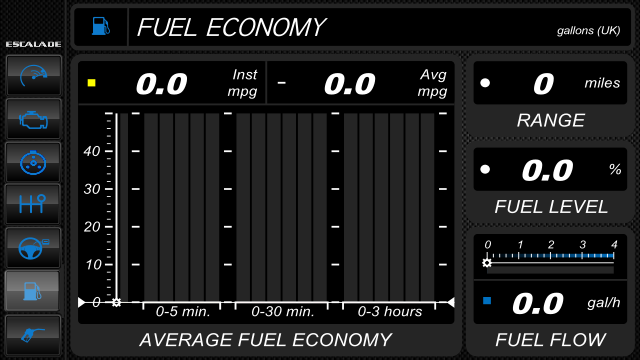

Fuel economy / consumption dashboard:
- range in miles
- fuel level percent
- fuel flow
- more to be further explained.

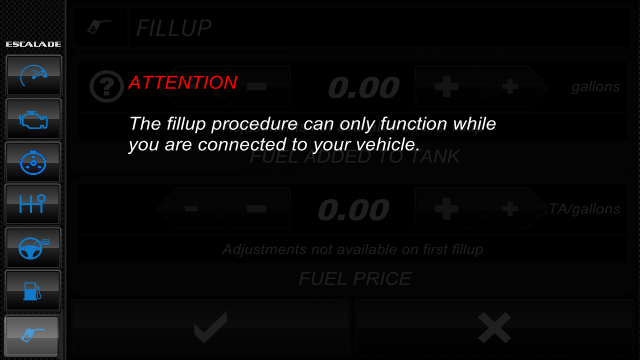

Fuel Fill-up Dashboard
- record fuel tank fill-up events
- calibrates the fuel economy / consumption calculations
- allows input of the fuel price
- more to be further explained.

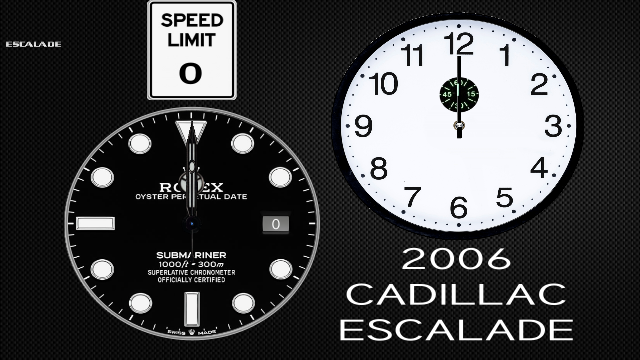

Whiteboard Dashboard - used for testing purposes.
- analog clock.
- fixed hour hand tracking
- Rolex watch face
- more to be further explained.


* Requires that the vehicle supports the underlying parameter ID.
** SCRIPT.VSS_MACH.psf must be downloaded and installed. download from ==> http://www.dashxl.net/forum/index.php?action=dlattach;topic=18236.0;attach=892

(Highway Gothic) true type fonts used throughout many of the dashboards. download from ==> https://www.dafont.com/highway-gothic.font
