This set of 2 dashbaords and optimized for Toyota MR-S with 5 speed (6 speed in another dashboard) :

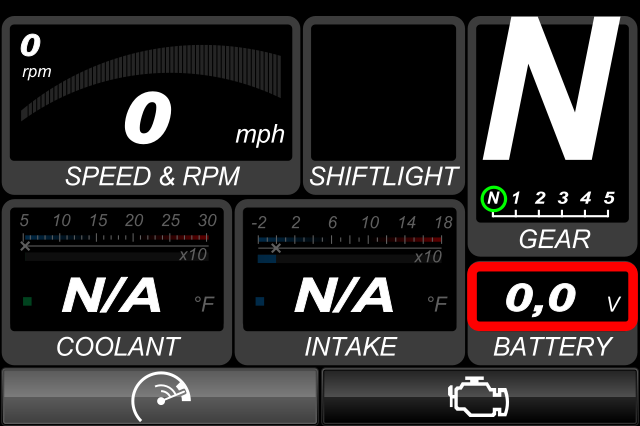

Performance dashboard :
- engine speed (rpm or tr/min and mph or km/h)*
- current fuel system in use (open or closed loop)
- engine coolant temp (°F or °C)
- engine intake temp (°F or °C)
- battery voltage (red button under 12.0V and upper 14.5V)
- current gear (5 gears in this skin)**
- shiftlight (yellow button : 4000
rpm / orange button : 5200rpm / red button : 6400rpm)

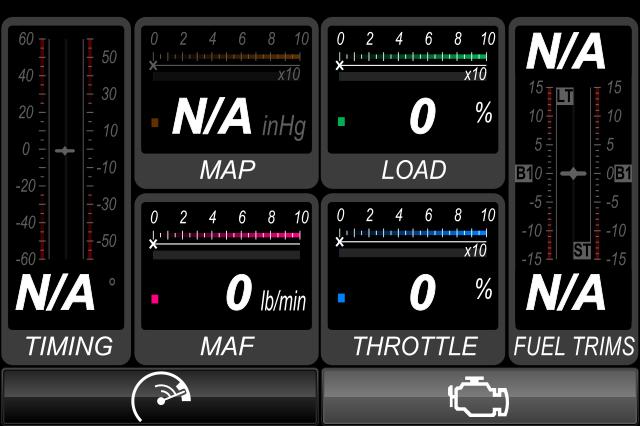

Engine metrics :
- timing (spark avdance %)
- manifold absolute pressure (inHg or kPa)
- mass air flow (lb/min or g/s)
- percent engine load (%)
- throttle position (%)
- fuel trims, short and long term (%)

* maximum and minimum engine speed and speed correction must be completed
** gear ratios, tire size spec and wheel circumference must be completed

Stock MR-S 5 speed :
Maximum : 7000rpm and Minimum : 750rpm
Speed correction : 0.95
Tire : 205/50/15
Wheel circ : 1841mm
Final drive ratios : 12.477;7.504;5.163;3.819;3.212
