This set of 2 dashbaords and optimized for Toyota MR-S with 6 speed (5 speed in another dashboard) :

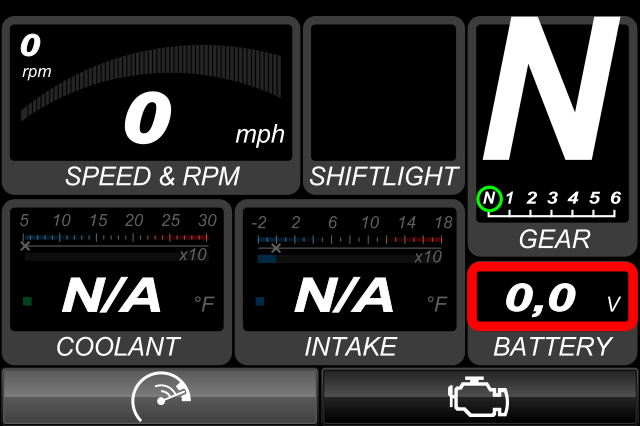

Performance dashboard :

- engine speed (rpm or tr/min and mph or km/h)*
- current fuel system in use (open or closed loop)
- engine coolant temp (°F or °C)
- engine intake temp (°F or °C)
- battery voltage (red button under 12.0V and upper 14.5V)
- current gear (6 gears in this skin)**
- shiftlight (yellow button : 4000
rpm / orange button : 5200rpm / red button : 6400rpm)

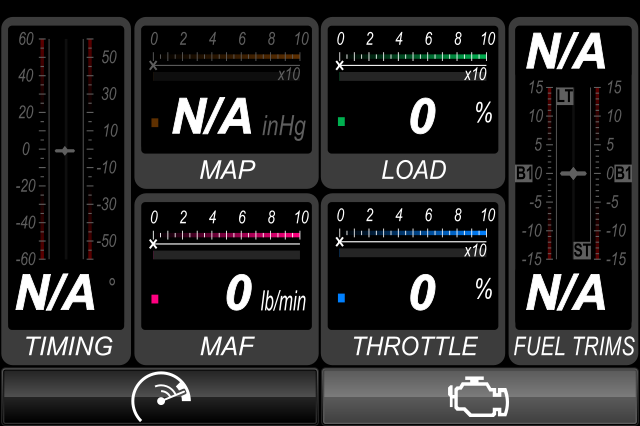

Engine metrics :

- timing (spark avdance %)
- manifold absolute pressure (inHg or kPa)
- mass air flow (lb/min or g/s)
- percent engine load (%)
- throttle position (%)
- fuel trims, short and long term (%)

* maximum and minimum engine speed and speed correction must be completed
** gear ratios, tire size spec and wheel circumference must be completed
