Project Eclipse

Jeta1 Flash Dash

Download this dasboard

Version: 3.4File Size: 3.25 MBCreator: Jeta1Rating: 4.50
Last Updated: 10-14-2023Released: 09-09-2014Downloads: 13849Views: 680718
Tags: Shift Lights, Tuxedo,Mobile,Landscape,iPhone,Android
4 ratings

Talk about this dashboard on our forums


Beta skinxl used.

This is my latest daily.

I have reversed engineered many skins that are on this site to see how they work, as the tutorials are a bit lacking.

I would like to thank all of the skin creators for the ideas that have made my limited knowledge a working example.

Special thanks for Fizban for the inspiration to learn as I have followed and learned the most from his work.

Special thanks to wagonkit for the coolant and intake design.

Special thanks to Spannor for loading screen background.

Version 3.4
Fixed max torque gauge, ghost torque to 300 max
Fixed max HP guage, ghost HP to 300 max

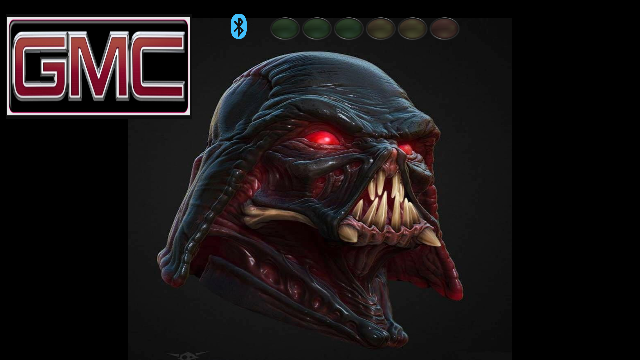

Removed situational awareness picture and found better GMC picture.
Removed last dash

Version 3.3
Added situational awareness picture
Removed GMC picture

Version 3.2
Added GMC Yukon XL picture
Adjusted power from max 200 hp to 300hp
Adjusted torques from max 200 lbs to 300 lbs
Added gages to monitor transmission temp

Version 3.1
Reduced transparency for shift lights
Eliminated (max) collant temp ghost value and changed to just value

Version 3.0
Changed load screen, little dodge logo and cool picture

Version 2.9

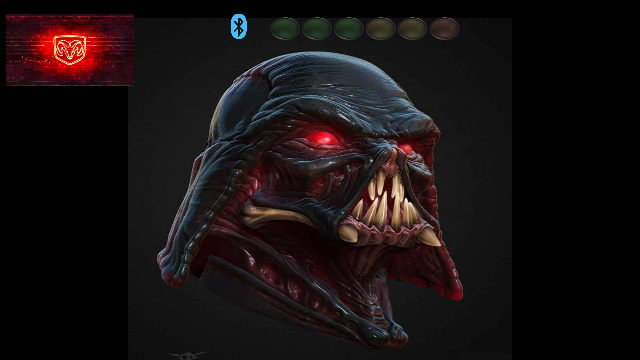

Changed loading picture to Dodge

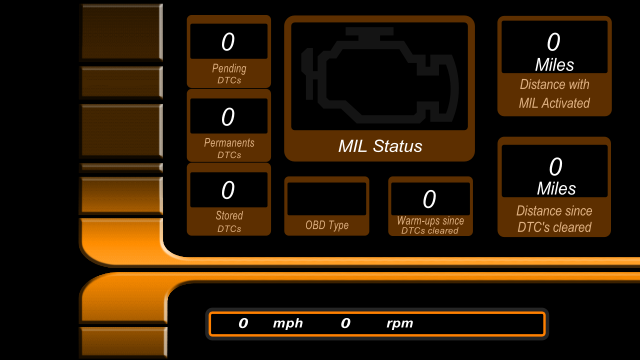

Added MIL indicator page

Version 2.8
Removed mask

Version 2.7
Added mask for COVID-19 compliance


Version 2.6

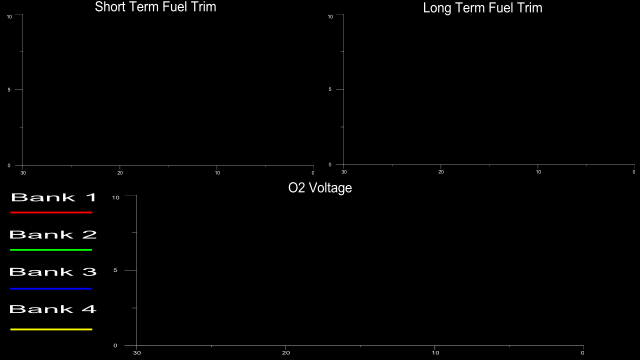

Added O2 sensor, fuel trim, voltage bank 1, 2, 3, 4


Version 2.5
Modified voltage gauge, centered voltage in green

Version 2.4
Adjusted day screen, since buried under load screen.

Version 2.3
Adjusted coolant level from 220 to 240
Added additional visual voltage warning (low and high)

Version 2.2
Small adjustments made

Version 2.1
Small adjustments made

Version 2.0

Added loading screen for Tiburon
Added Tuxedo Fuel Restet System

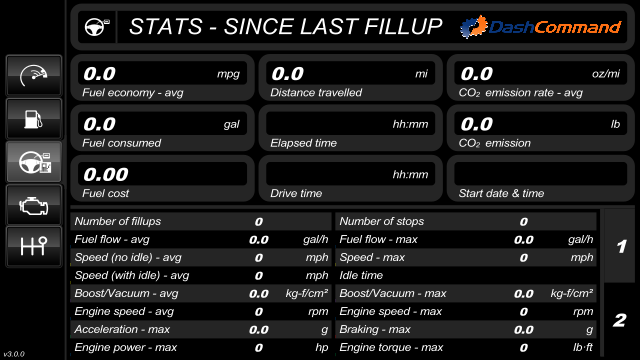

Added Tuxedo Mileage Infrmation

Version 1.7

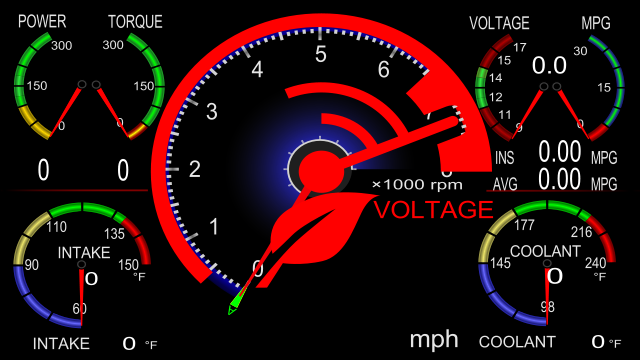

*No Metric

Toned down for faster refresh rate

HP - Gauge - Ghost(max)/Actual
HP - Digital (max)

Torque - Gauge - Ghost(max)/Actual
Torque - Digital (max)

Air intake - Gauge - Actual
Air intake - Digital(min)
Ait intake - Digital(current)

RPM - Gauge (max 8000 rpm)

Speed - Digital (<10mph hidden)

Voltage - Gauge (red leaf indicator voltage <12)
Voltage - Digital - Actual

Range - Gauge - 0 - 300 (Trip)
Fuel Used - Digital
Trip Reset

Coolant - Gauge - Actual
Coolant - Digital(max)
Coolant - Digital(current)

Shift Indicators (full screen)
- 3200 RPM - green
- 4000 RPM - orange
- 5000 RPM - red


Night screen
Shift indicators (full screen)
- 3200 RPM - green (50% opacity)
- 4000 RPM - orange (50% opacity)
- 5000 RPM - red (50% opacity)

________________________________________________________

Version 1.6
Cleaned up gauges

Version 1.5
Alignment of gauges

Version 1.4

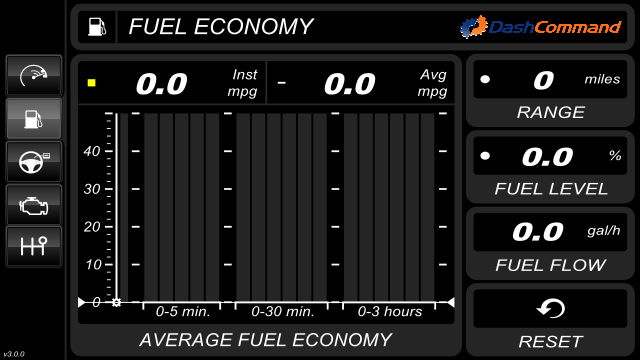

Inserted instant and average MPG gauge.
Less than <20 mpg, font is red

Version 1.3
This is my daily, small little tweaks, thought I would share.
Jeta1

Version 1.2
Lots of changes

Version 1.1
Added buttons to change screens
Added fan indicator at >197 F

Version 1.0 Initial Release

HP - Current & Max
Torque - Current & Max
Spark Advance
Voltage - Low/High Voltage Warning Indicator
MPG - Instant & Average
Air Intake - (min value - ghost)
RPM
Speed
Coolant (max value - ghost)
Cold Engine Indicator ( <118 F)
Shift Indicators
- 3200 RPM - yellow
- 4000 RPM - orange
- 5000 RPM - red


This is by no means complete, if anyone has any suggestions, feel free to comment.

Jeta1
