Tuxedo 3.0.1 Français

Simple et élégant jeu de tableaux de bord en noir et blanc, avec une touche de couleur. Convient aux téléphones portables avec une orientation portrait ou paysage.

Download this dasboard

Version: 3.0.1File Size: 2.57 MBCreator: framugRating: 0
Last Updated: 12-18-2014Released: 12-18-2014Downloads: 334Views: 2522
Tags: Tuxedo,Mobile,Portrait,iPhone,Android
0 ratings

Talk about this dashboard on our forums


Ce jeu de 6 tableaux de bord inclut les jauges et les caractéristiques suivantes :

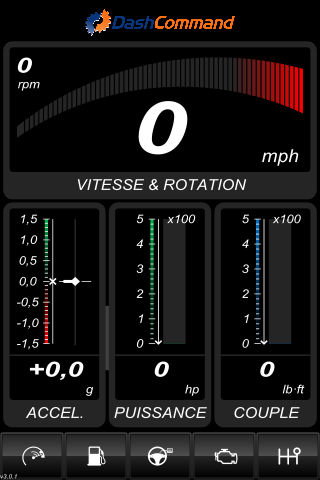

Performance dashboard:
- engine speed with sweeping bar
- corrected vehicle speed
- current fuel system in use (open or closed loop)*
- accelerator pedal position*
- throttle position*
- boost / vacuum combo gauge with maximum vacuum and maximum boost values
- acceleration (and braking)
- power at wheels with optional drag correction (air & tire)**
- instantaneous fuel ecomony / consumption
- intake air temerature
- torque at wheels**
- average fuel economy / consumption
- coolant temperature

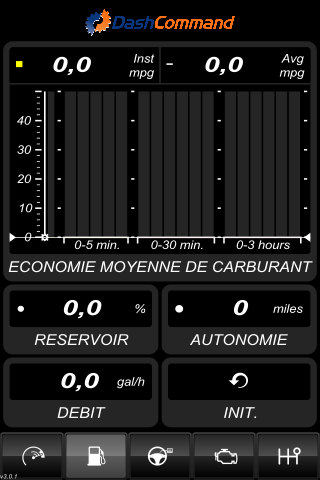

Fuel economy / consumption dashboard:
- instantaneous fuel ecomony / consumption
- average fuel economy / consumption
- average fuel economy / consumption over 3 time periods
- distance to empty *
- time to empty *
- fuel level % *
- volume of fuel remaining in tank *
- fuel flow rate gauge with current, average, minumum and maximum values

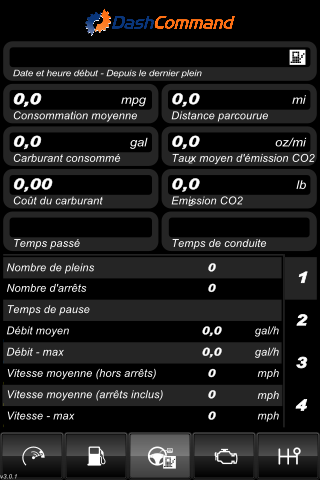

Trip computer dashboard:
- 5 monitored trips; custom A and B trips, Today, Previous Day, and Fillup
- distance travelled
- fuel consumed
- average fuel economy / consumption
- fuel cost
- elapsed time
- drive time
- average carbon dioxide emission rate
- total carbon dioxide emission
- start date & time
- number of fillups
- average fuel flow rate
- average driving speed
- average trip speed
- average boost/vacuum
- average engine speed
- maximum acceleration
- maximum engine power at wheels
- number of stops
- maximum fuel flow rate
- maximum speed
- idle time
- maximum boost/vacuum
- maximum engine speed
- maximum braking acceleration
- maximum engine torque
- percent distance travelled while not in gear
- percent distance travelled in each gear
- percent distance travelled in non-optimal gear
- percent time spent while not in gear
- percent time spent in each gear
- percent time spent while in a non-optimal gear

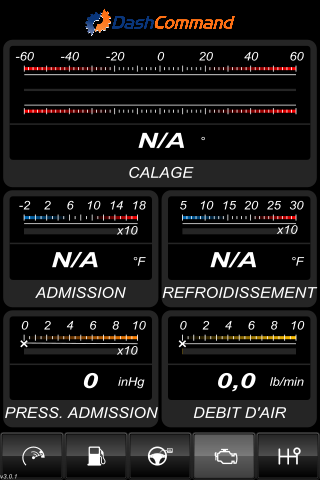

Engine metrics dashboard 1:
- timing (spark avdance) *
- engine coolent temperature *
- intake air temperature
- ambient air temperature *
- manifold absolute pressure
- mass air flow

Engine metrics dashboard 2:
- fuel trims, short and long term (banks 1 to 4) *
- percent engine load *
- catalyst temperature *
- fuel rail pressure wwith two scales, low and high *
- lambda gauge with commanded and actual readings *
- air / fuel ration gauge *

Fillup dashboard:
- record fuel tank fillup events
- calibrates the fuel economy / consumption calculations
- allows input of the fuel price

* requires that the vehicle supports the underlying parameter ID.
** curb weight must be specified in the vehicle settings
