Loved this guy's simple dash, so I had to make my own modded version.

SAE.IAT isn't just a turbo pid, it's used in any car with an intake temp sensor. My 1996 Corolla uses the same pid. Also, had to change some pids. Some cars read voltage through "Vehicle.Voltage" instead of the SAE pid.

Anyways, this is my version of the VBW 2.0 Dash scheme. :)




I need basic, easy to read gauges that are quickly comprehended.

2 types of dashes:
- the one with all rectangular gauges is intended for vertical use
- the one with 2 round gauges is intended for horizontal use. Each has 3 color variations I'm experimenting with.

The vertical dashes:
- the top left gauge is RPM and includes the current gear.
- the top right gauge is MPH - large number is DC's calulated value and the smaller one is the car's value.

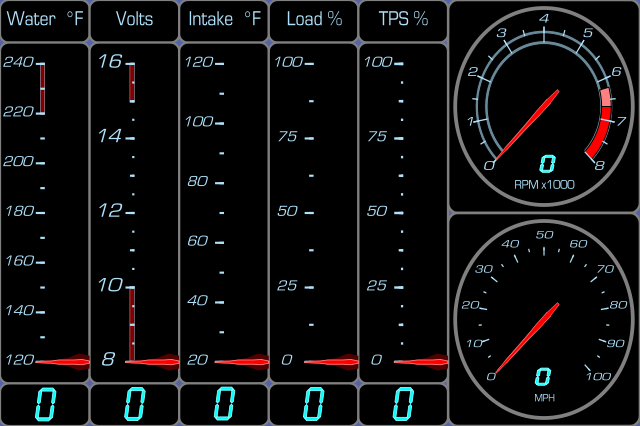

The horizontal dashes:
- both round gauges include the current gear.
- the MPH gauge is DC's calulated MPH.

Notes:
- DC's calculated MPH will be identical to the car's if you haven't entered gear ratios into DC.
- The current gear will need gear ratios too.
- the Intake temperature (SAE.IAT) may be a feature of a turbo car so it may not work for you.
