This was an existing setup that I modified for IAT2 and oil temp on one engine screen.

This set of 7 dashbaords includes the following gauges and features:

Performance dashboard:
- engine speed with sweeping bar
- corrected vehicle speed
- throttle position*
- boost / vacuum combo gauge with maximum vacuum and maximum boost values increased to 30 PSI max
- acceleration (and braking)
- power at wheels with optional drag correction (air & tire)**
- torque at wheels**

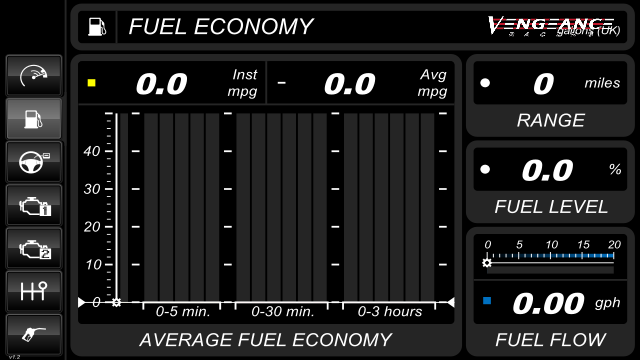

Fuel economy / consumption dashboard:
- instantaneous fuel ecomony / consumption
- average fuel economy / consumption
- average fuel economy / consumption over 3 time periods
- distance to empty *
- time to empty *
- fuel level % *
- volume of fuel remaining in tank *
- fuel flow rate gauge with current, average, minumum and maximum values modified to 20 gal/hour max

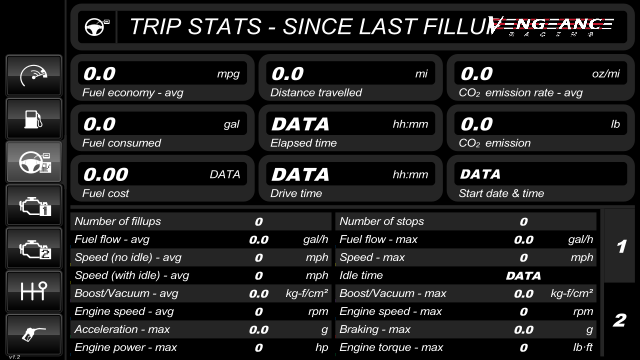

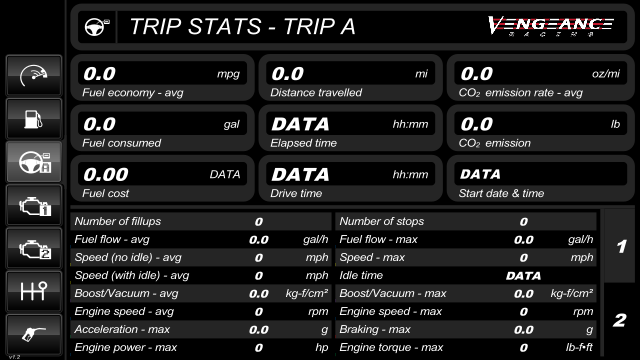

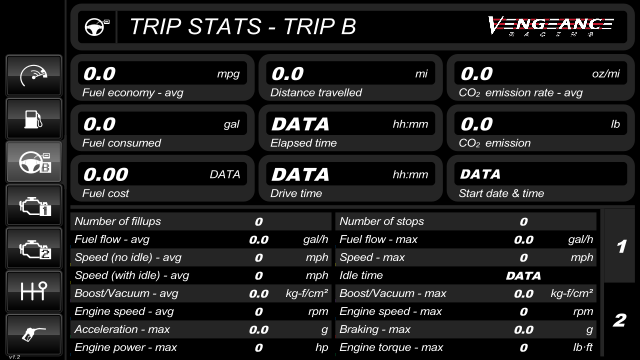

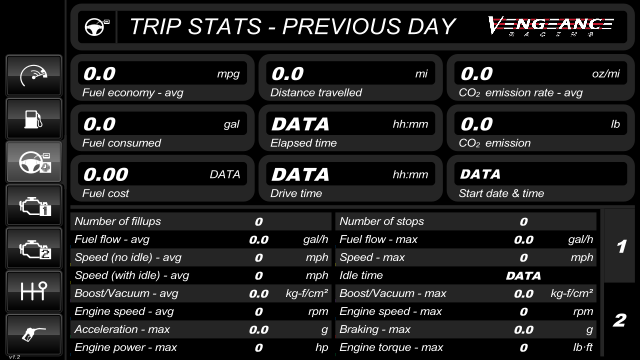

Trip computer dashboard:
- 5 monitored trips; custom A and B trips, Today, Previous Day, and Fillup
- distance travelled
- fuel consumed
- average fuel economy / consumption
- fuel cost
- elapsed time
- drive time
- average carbon dioxide emission rate
- total carbon dioxide emission
- start date & time
- number of fillups
- average fuel flow rate
- average driving speed
- average trip speed
- average boost/vacuum
- average engine speed
- maximum acceleration
- maximum engine power at wheels
- number of stops
- maximum fuel flow rate
- maximum speed
- idle time
- maximum boost/vacuum
- maximum engine speed
- maximum braking acceleration
- maximum engine torque
- percent distance travelled while not in gear
- percent distance travelled in each gear
- percent distance travelled in non-optimal gear
- percent time spent while not in gear
- percent time spent in each gear
- percent time spent while in a non-optimal gear

Engine metrics dashboard 1: (modified for Cummins)
- vehicle voltage *
- engine coolent temperature *
- intake air temperature 2
- mass air flow
- fuel rail pressure
- oil temperature

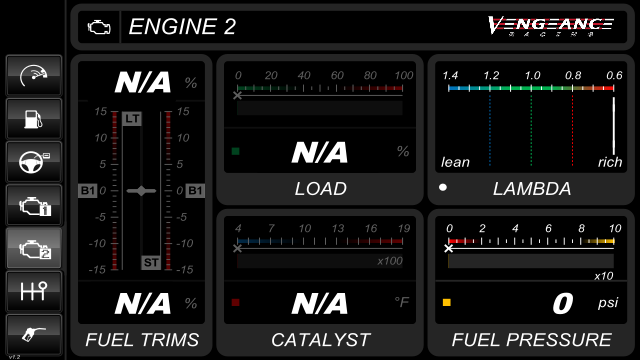

Engine metrics dashboard 2:
- fuel trims, short and long term (banks 1 to 4) *
- percent engine load *
- catalyst temperature *
- fuel rail pressure wwith two scales, low and high *
- lambda gauge with commanded and actual readings *
- air / fuel ration gauge *

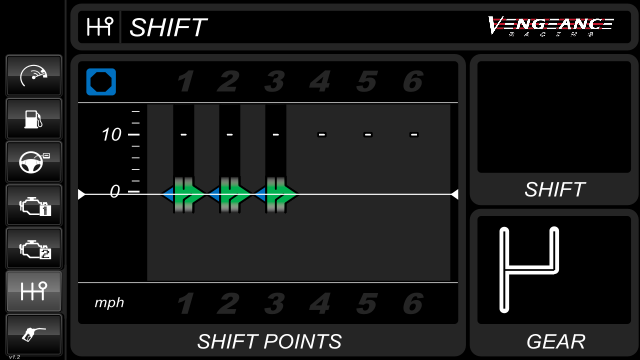

Shifting and gear dashboard:
- current gear
- suggested gear based on speed
- shift indicator
- shifting and gear map

Fillup dashboard:
- record fuel tank fillup events
- calibrates the fuel economy / consumption calculations
- allows input of the fuel price

* requires that the vehicle supports the underlying parameter ID.
** curb weight must be specified in the vehicle settings

=============== CHANGLOG ===============

v1.1:
- Added Oil Temp


Tested on 2009 Cadillac CTS-V with manual transmission.
