Release 1.1.0 - Version notes

Two dashes as described below for the 2ZZ.

Dash Summary

- adapted from johnb's design for use with 2ZZ engined elise & exige variants. A minimalist portrait dash designed to display 3 basic parameters in an uncluttered way.

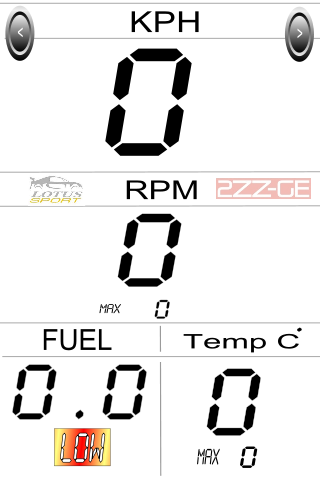

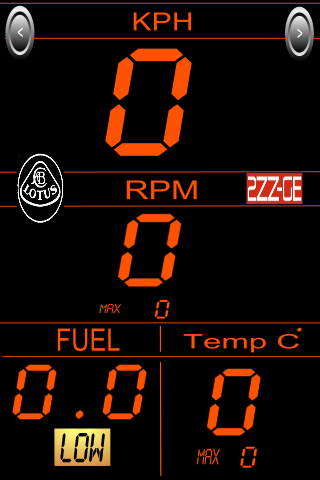

It features a choice of one day and one night dashboard. Each dash displaying - Water temp (including alert), RPM (including alert), SPEED & Fuel level remaining
The "RPM Shift" and "Over Temperature" warnings are set as follows
- Red over temp alert above 102 degrees C, shift alert at 8200RPM and low fuel at 7L
(to get this to work you must input your fuel tank capacity in your vehicle details in settings (standard tank & car 43.5 litres).
Please ensure you are using the correct display for your vehicle type.

Release 1.1.0 - Version notes

Four dashes as described below as well as a landscape track day dash for the 1ZZ and a dash labeled "Demo Use Only" which has low thresholds for the waning values so that you can see what warning is given but at a safer level, This dash is stictly for demonstration purposes only.

Dash Summary

A minimalist portrait dash designed to display 3 basic parameters in an uncluttered way for the Rover VVC and 4 for the Toyota 1ZZ engined Lotus Elise

It features a choice of one day and one night dashboard for the Rover VVC and one day and night dash for the 1ZZ engine. Each dash displaying - Water temp (including alert), RPM (including alert) & SPEED, the 1ZZ also shows Fuel level remaining
The "RPM Shift" and "Over Temperature" warnings are set as follows
The VVC dashboards flash a Red over temp alert at 97C and shift alert at 6000RPM
The 1ZZ dashboards flash a Red over temp alert at greater than 102C, shift alert at 6500RPM and low fuel at 10L

Please ensure you are using the correct display for your vehicle type.
