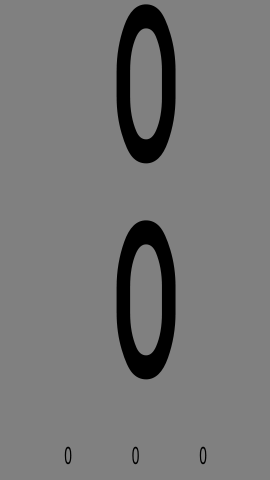

Trying to add only a few values only as numbers. The idea is that the values should be as large as possible so that they can be checked quickly while driving at the limit (on the track).
- The large number at the top is SAE.ECT in Celsius degrees. Standard param, should work by default for all cars
- The large number at the bottom is SUBARU.ENGINE.OIL_TEMP in Celsius degrees (only works if you purchased the Subaru BRZ extended parameters)
- When I log I also want to have the rpm, throttle position and vehicle speed, so that when reviewing the data that was logged I can tell where I am based on these three. But these values don't seem to be logged unless I add them to the dashboard (in fact the RPM seems to be logged no matter what, but the throttle position and vehicle speed weren't logged if I didn't have them on the dashboard). So because of this I also added on the bottom:
- SAE.RPM
- SAE.TP
- SAE.VSS
But these are with small fonts because I don't need to see them when I am driving, I just need to put them on the screen so that when logging they are also saved in the log file
