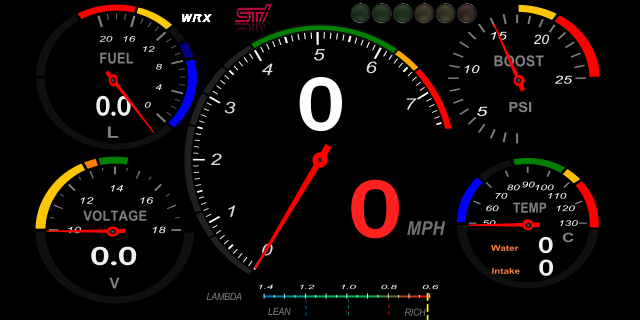

This design has been altered for my own car, all credits go to the Ford Fiesta EcoBoost 1.6 ST author.

Swipe left to access other gauges.

1. Added different parameters for the boost - this might not suit all V7 subarus. Suitable for V8 VF36 turbo.

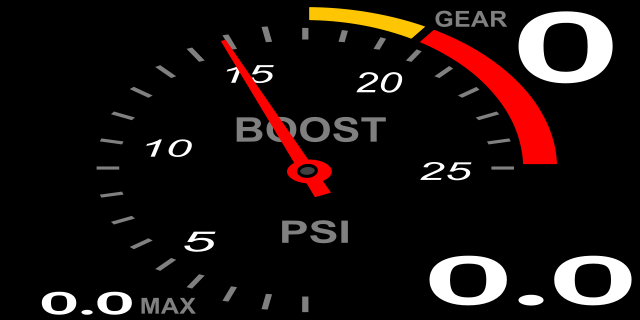

2. Boost gauge update/fix

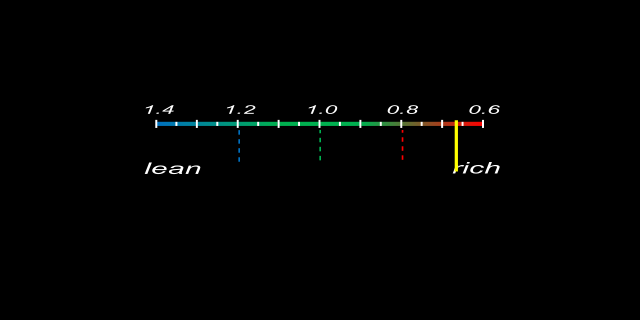

3. Added lambda

4. Increased speed text size

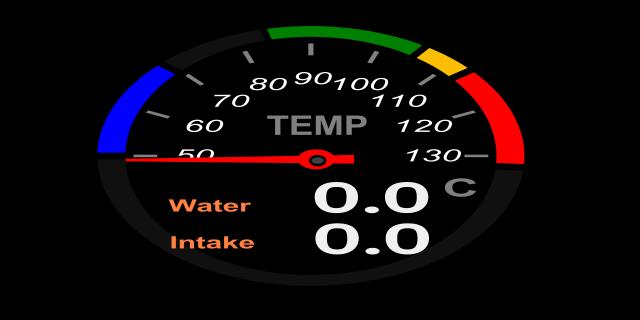

5. Added Temperature Guage

6. Suitable for IPhone 5 size screens.


Chris Hatton.

All the credit goes to

"A dashboard for the new Ford Fiesta EcoBoost 1.6 ST. Designed for 4:3 screens only (e.g. IPad).
Version 0.3 "

Realistic analog look. It's dedicated to the fast driver. You will feel faster...

1. Big center RPM gauge with eco, fun and danger zone.
2. Shift warning lights in F1 style (green, yellow, red). Gear Indicator.
2. Digital speed in miles and km/h.
3. Power and torque
4. Engine Load horizontal gauge
4. Round Turbo gauge (comparable to those that you can by)
5. Round Temperatur gauge (less optimistic than the electronic stock gauge) for cooling and intake temperatur
6. Round Fuel consumption gauge with eco and uneco (fun) zone
7. Voltage

To be implemted:
1. Some more fuel consumption oriented figures
