Lotus Elise 2ZR-FE Lotus Elise S - MK3 - 2ZR-FE Engine

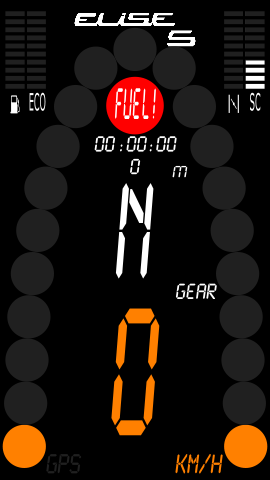

![]() ![]() ![]() ![]() ![]() Dashboard designed for Lotus Elise S MK3 (2ZR_FE engine, supercharged, 220PS@6800RPM, 250Nm@4600RPM)

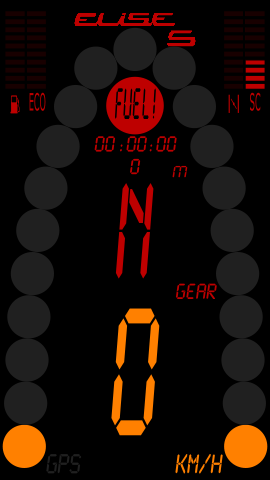

MAKE SURE YOU HAVE CHECKED AND UPDATED THE PARAMETERS (ESPECIALLY THE RPM LIMITS AND RPM-SETPOINTS FOR SHIFT INDICATORS) TO YOUR ENGINE BEFORE USING THIS DASHBOARD. V2.1 - 2016-01-09 - Add night mode dashboard (same content) - Lotus logo changed V1.3 - 2016-01-06 - Red background (full screen) already at 6500rpm - Blue: 4599,5000,5500 - Red: 6000, 6200, 6400, 6500 - Boost Pressure range changed from 0-0.8 to -0.3to 0.5 GAUGES: Fuellevel [0 -100%] Consumption [0 -20 l/100km] Load [0 - 100%] Supercharger Boost [-0.3 to 0.5 bar] (please set units to bar in settings) WARNINGS: (shown instead of Lotus logo) Priority 1: Cooling Temperature: Blue below 80°C; Red above 98°C Priority 2: Fuel Level: Yellow below 10l; Red below 5l OTHER INICATORS Clock Current gear; Red background if >= 6800 rpm Speed (corrected !; CALC.VSS_C) GPS Altidute GPS SPEED (can be switched on/off) by tapping on GPS-text; may be used to check speed correction factor RPM - by "LEDs" at following conditions: >= 100 = ON - Green >= 1500 - Green >= 2500 - Green >= 3500 - Green >= 4500 - Blue >= 5000 - Blue >= 5500 - Blue >= 6000 - Red >= 6200 - Red >= 6400 - Red >= 6500 - Red (TOP) SHIFT INDICATORS NOTE! Shift indicators (blue arrows ) targets to remain >4600rpm for max. torque SHIFT-DOWN RPM MIN! Target RPM 6->5 4000 4600 5->4 3900 4600 4->3 3400 4600 3->2 3200 4600 2->1 2500 4600 SHIFT-UP RPM Max Target-RPM 1->2 6800 3600 2->3 6800 4600 3->4 6200 4600 4->5 5600 4600 5->6 5400 4600 |
