### CHANGE LOG

### v1.4.61 - Nov 5 2014
changed fonts and some misc stuff.

### v1.4.6 - 18 Sep. 13

- Fixed some alignment and formating issues

### v1.4.5 - 17 Sep. 13

- Changed the boost gauge to show either boost or vacuum as titel
- Changed the boost gauge to show negative tick marks when in vacuum mode.
- Fixed an issue with the boost gauge needle in metric units system

### v1.4.1 - 16 Sep. 13

- Fixed an issue with the secondary menu of the fuel consumption dashboard
- Fixed some alignment and formating issues

### v1.4 - 14 Sep. 13

Added a tab switch to the stats panel that will cycle the stats sites 1-4 (trip dashboard)
Added a gradient design layer to all gauge displays
- Fixed some alignment and formating issues

### v1.3 - 12 Sep. 13

- Added a shift indicator to the "speed-rpm-gear" gauge. Indicates: green to shift down when rpm is below 1000 and gear is greater 2, yellow to shift up when rpm is between 4000 and 5750, red (single) to shift up when rpm is above 5750, red (triple) to shift up when rpm is above 6500
- Fixed some alignment and formating issues

### v1.2 - 11 Sep. 13

- Added a tap switch to the "speed-rpm-gear" gauge that will swap positions of engine speed and speed (performance dashboard)
- Added a oil temperature gauge (performance dashboard)
- Added a quick reset button for "trip a" and "trip b" to the "start date & time" gauge (trip trashboard)
- Adjusted some font sizes for better reading on small devices
- Fixed some alignment issues

### v1.1 - 09 Sep. 13

- Added a tap switch to the "start date & time" gauge that will cycle through trip stats (trip dashboard)
- Fixed the battery gauge needle to work as intended (performance dashboard)
- Adjusted some font sizes for better reading on small devices
- Fixed some alignment issues

### v1.0 - 08 Sep. 13

- Added a battery voltage gauge (performance dashboard)
- Added a gear indicator (performance dashboard)***


### FEATURES

This set of 6 dashbaords includes the following gauges and features:

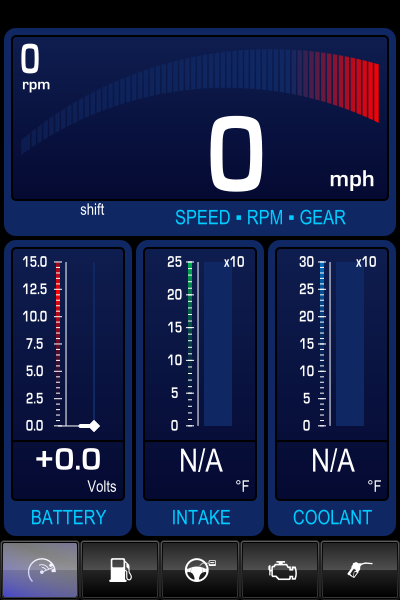

Performance dashboard:
- engine speed with sweeping bar
- corrected vehicle speed
- gear indicator (caluclated) ***
- current fuel system in use (open or closed loop)*
- accelerator pedal position*
- throttle position*
- boost / vacuum combo gauge with maximum vacuum and maximum boost values
- acceleration (and braking)
- battery voltage gauge
- power at wheels with optional drag correction (air & tire)**
- instantaneous fuel ecomony / consumption
- intake air temerature
- torque at wheels**
- average fuel economy / consumption
- coolant temperature

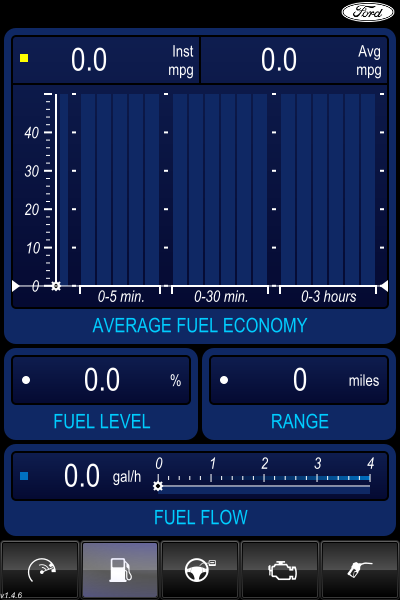

Fuel economy / consumption dashboard:
- instantaneous fuel ecomony / consumption
- average fuel economy / consumption
- average fuel economy / consumption over 3 time periods
- distance to empty *
- time to empty *
- fuel level % *
- volume of fuel remaining in tank *
- fuel flow rate gauge with current, average, minumum and maximum values

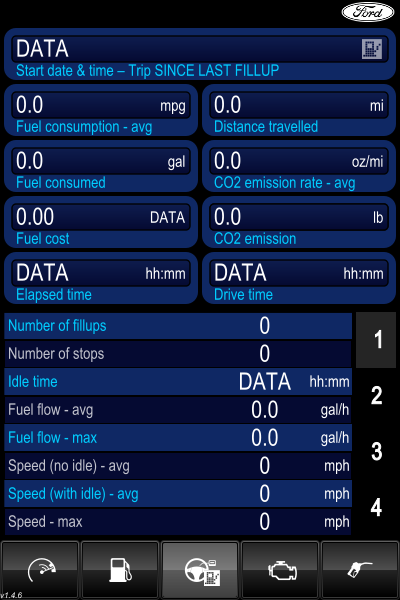

Trip computer dashboard:
- 5 monitored trips; custom A and B trips, Today, Previous Day, and Fillup
- distance travelled
- fuel consumed
- average fuel economy / consumption
- fuel cost
- elapsed time
- drive time
- average carbon dioxide emission rate
- total carbon dioxide emission
- start date & time
- number of fillups
- average fuel flow rate
- average driving speed
- average trip speed
- average boost/vacuum
- average engine speed
- maximum acceleration
- maximum engine power at wheels
- number of stops
- maximum fuel flow rate
- maximum speed
- idle time
- maximum boost/vacuum
- maximum engine speed
- maximum braking acceleration
- maximum engine torque
- percent distance travelled while not in gear
- percent distance travelled in each gear
- percent distance travelled in non-optimal gear
- percent time spent while not in gear
- percent time spent in each gear
- percent time spent while in a non-optimal gear

Engine metrics dashboard 1:
- timing (spark avdance) *
- engine coolent temperature *
- intake air temperature
- ambient air temperature *
- manifold absolute pressure
- mass air flow

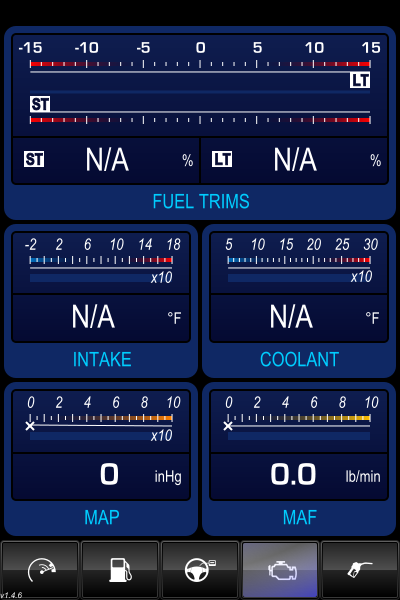

Engine metrics dashboard 2:
- fuel trims, short and long term (banks 1 to 4) *
- percent engine load *
- catalyst temperature *
- fuel rail pressure wwith two scales, low and high *
- lambda gauge with commanded and actual readings *
- air / fuel ration gauge *

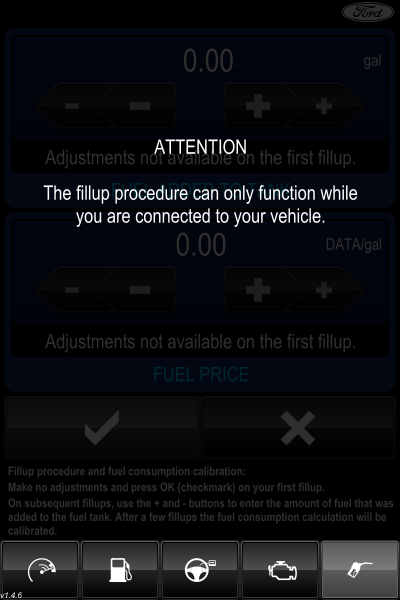

Fillup dashboard:
- record fuel tank fillup events
- calibrates the fuel economy / consumption calculations
- allows input of the fuel price

* requires that the vehicle supports the underlying parameter ID.
** curb weight must be specified in the vehicle settings
*** requires the following vehicle settings to work: tire size (or wheel circumference), final drive ratios, max engine speed, min engine speed & shift point
